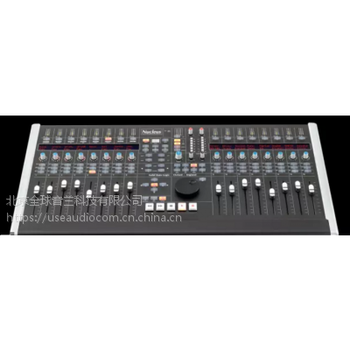

：760021487 手機：手機號搜索 聯系人：陳經理 Nucleus主要特性：



通過網線與電腦連接的DAW控制器
支持Pro Tools、Logic、Cubase/Nuendo等主流DAW軟件
可同時連接3個不同的DAW軟件，一鍵切換
8個通道控制，帶2個庫，等于可切換16種通道控制
觸感100mm電動推子
SD卡可存儲配置文件
可看到每個通道的電平，按鈕帶背光，旋鈕也帶一圈LED顯示燈指使位置
帶有SuperAnalogue技術的電路
USB音頻接口，可連接DAW軟件的輸入和輸出通道
兩個XLR/TRS混合輸入接口，可連接其它聲卡或監聽輸出
數字SPDIF輸入/輸出接口
零延遲監聽
SuperAnalogue的話放。帶80Hz高通濾波、反相和幻相供電
4個USB接口，可串接4個USB設備
帶一個標準的踏板接口
兩個耳機輸出和一個iJack監聽輸入

Physical *
Depth 385mm / 15.25" including trim, excluding connectors
Height 120mm / 4.75" including feet
Width 730mm / 28.75" including trim
Weight 7.5kg / 16.5 pounds
Power < 90 Watts
Boxed size 460mm x 200mm x 800mm / 18.25" x 8.0" x 31.5"
Boxed weight 8.0kg / 17.75 pounds

* All values are approximate


Environmental
Temperature Operating: +5 to 30 deg. C

Non-operating: –20 to 50 deg. C

Max. gradient: 15 deg. C/hour
Relative Humidity Operating: 20 to 80 %

Non-operating: 5 to 90 %

Max. wet bulb: (non-condensing) 29 deg. C
Vibration Operating: < 0.2 G (3 – 100Hz)

Non-operating, power off: < 0.4 G (3 – 100Hz)
Shock Operating: < 2 G (10ms max.)

Non-operating: < 10 G (10ms max.)
Altitude (above sea level) Operating: 0 to 3000m

Non-operating: 0 to 12000m


Connections
Power IEC320 3-pin connector, 100 – 240 Vac, 50 – 60 Hz, < 2.5A
Network 8P8c modular connector; ‘RJ-45’ type (100bT, Cat5)
USB 1 x type-B chassis socket, 4 x type-A chassis sockets
Terminal RS232, 9-pin sub-D (SSL diagnostic use only)
External In Balanced, 3-pin XLR-F, Zi > 10k
Pre-amp In Balanced, 3-pin XLR-F, Zi ≈ 1k2/10k
Balanced, 1/4" stereo jack socket, Zi > 10k/1M
Pre-amp, Monitor Out Balanced, 3-pin XLR-M, Zo ≈ 100Ω
Monitor –10dBV Unbalanced, phono (RCA) socket, Zo ≈ 100Ω
Inserts Balanced, stereo 1/4" jack socket, Zi > 10kΩ, Zo ≈ 100Ω
Headphones Stereo 1/4" jack socket, Zo ≈ 75Ω
Footswitch Stereo 1/4" jack socket (2 circuits)
iJack Stereo 3.5mm jack socket, Zi ≈ 10k


Performance Specification
Frequency Response (+/- 0.1db 20-20kHz)
THD +N (1kHz) 0.001% @ +24 dBU
Soundcard Specs 44.1kHz-192kHz - 24 Bit
Max Headroom (INPUT) +26 dBU
Max Headroom (OUTPUT) +25 dBU
Dynamic Range >115dB A weighted
Equivalent Input Noise -128dBU A weighted


System Requirements

Macintosh
Intel only, 1.2GHz or faster
OS X Version 10.5.8 or greater (‘Leopard’ or ‘Snow Leopard’) (32bit only)

Windows
Pentium IV or equivalent, 1GHz or faster
Windows XP SP3, Vista SP1 or higher, or Windows 7 (32 or 64bit)
512MB RAM
15MB Hard Disk space
VGA colour screen (1024 x 768 pixels or higher)
Internet connection (for product registration and software upgrade)
